180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount

Name: 180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount
Brand: DGKYD
Price: 1 USD

180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount Manufactures

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-180CGYZNL

Price : Please contact us to get the latest price.

Type : RJ45 jack

Product Name : RJ45 with Transformer

Housing : Phenolic, PBT Black (UL94V-0)

Plastic core : Glass fiber filler PBT Black(UL94V-0),ROHS

Shielded : yes

No.Port : single port

Contact Now

Magnetics jack female shielded RJ45 connector Integrated pcb Mount

10/100Base-Tx RJ45 single port 1X1 vertical with top entry
Single port 1X1 Tab-Up 180 degree RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement

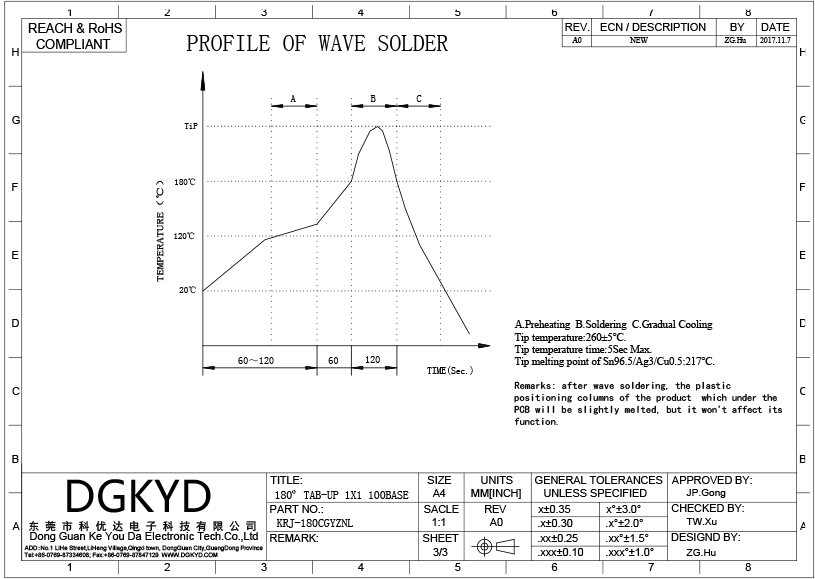

ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8
Shield:YES
Rohs compliant
Length:18.75mm
LEDS:YES
EMI finger:NO
LEFT LED:Green,RIGHT LED:Yellow

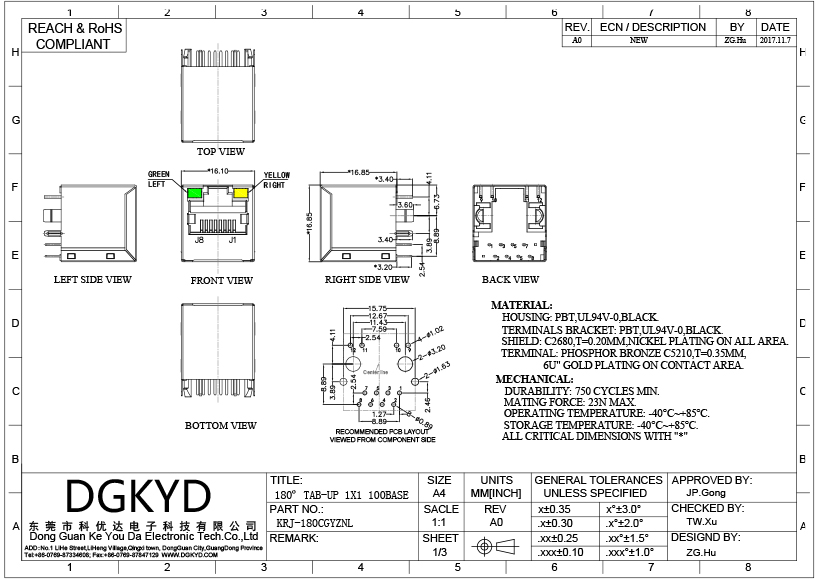

180 degree TOP ENTRY Magnetics jack RJ45 connector with transformer PCB Mount

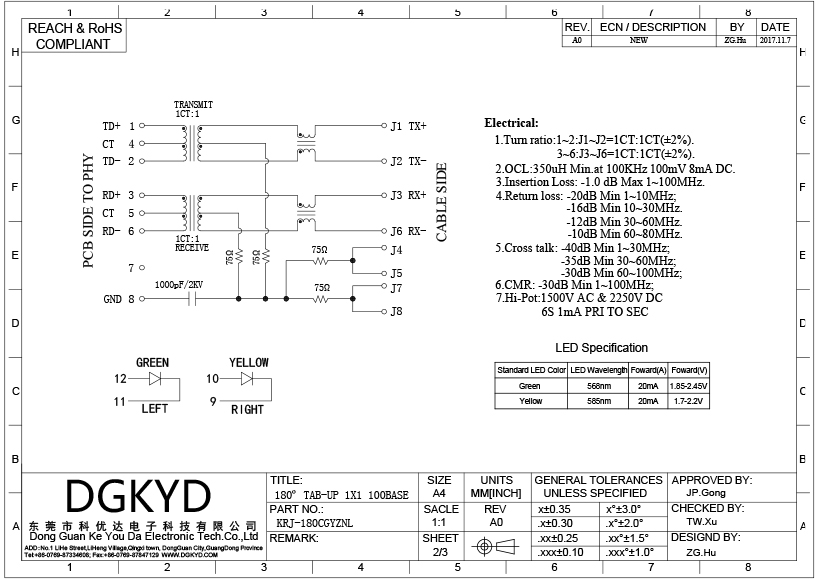

LED Specifications:

Emitting color	Dominant wavelength(nm) (min/max)	Forward voltage (v)	Forward current (A)	Type
Green	570-575	1.8-2.4	20mA	Squareness
Yellow	585-590	1.8-2.4	20mA	Squareness

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, 0 defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,pls do not hesitate to contact us by email or TradeManager. We will asap reply with in 24h.
