10 Pin Receiver Filter RJ45 jack with internal isolation transformer 1000 BASE

Name: 10 Pin Receiver Filter RJ45 jack with internal isolation transformer 1000 BASE
Brand: DGKYD
Price: 1 USD

10 Pin Receiver Filter RJ45 jack with internal isolation transformer 1000 BASE Manufactures

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : DGKYD111Q106DG5A1D

Price : Please contact us to get the latest price.

Product Name : RJ45 with Transformer

Plastic core : Glass fiber filler PBT Black(UL94V-0),ROHS

Shield RJ45 : yes

Type : RJ45 Female Jack

Housing : Phenolic, PBT Black (UL94V-0)

No.Port : RJ45 single port

Contact Now

10 Pin Receiver Filter RJ45 with Internal magnetics transformer

10 Pin Receiver Filter RJ45 jack with internal isolation transformer 1000 BASE

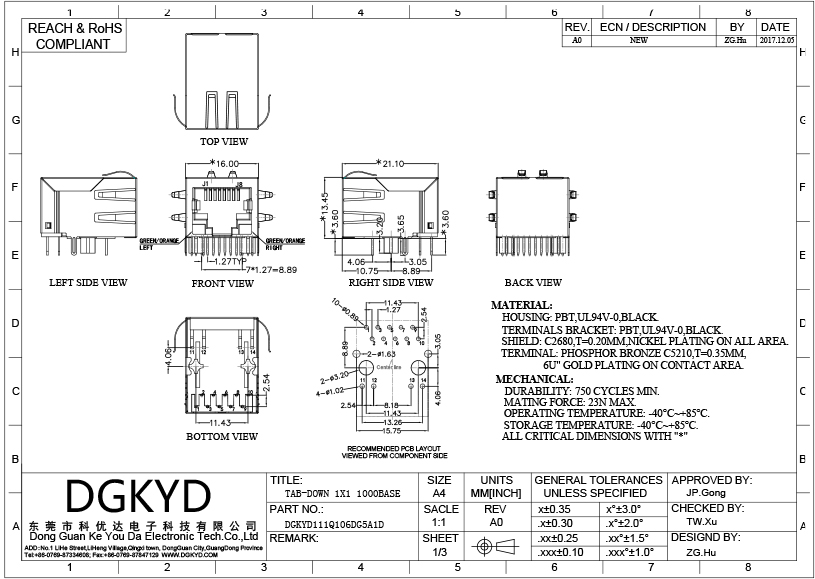

Material specifications:

Plastic core:Glass fiber filler PBT Black(UL94V-0)
Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
Housing:Phenolic, PBT Black (UL94V-0)
Metal shell:Copper Alloy ,Tin and Nickel plated

Applications:

Integrated RJ45 connector main used to :

• 10/10/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,

optical transceiver,IP phone, internet set-top box,internet camera,net bridge,

computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

For example:

10 Pin Receiver Filter RJ45 jack with internal isolation transformer 1000 BASE

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages
